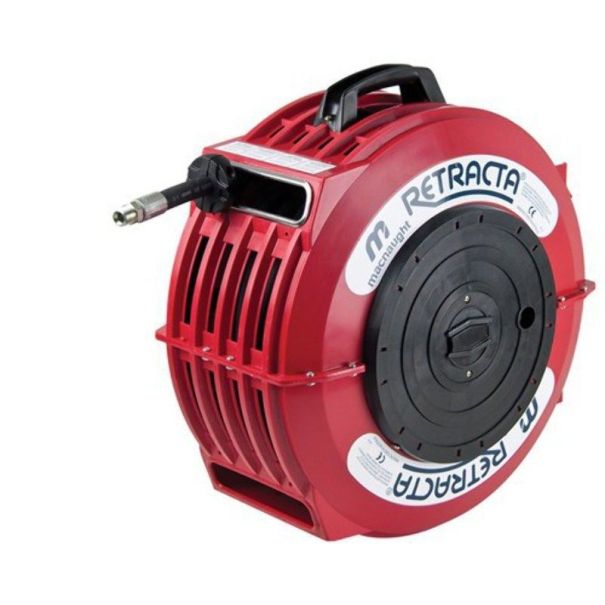

RETRACTA HIGH PRESSURE HOT WASH REEL, 10mm x 12m

MACNHWP2101

Product Overview

The High Quality RETRACTA HWP2101 High Pressure Hot Water Hose Reel is a premium quality, strong, reliable reel, constructed using UV stabilised polypropylene, heavy duty rewind spring, quality swivel assembly, 10mm x 12m hot water hose assembly and is supplied complete with mounting bracket and carry handle. Fitted with a positive spring latch mechanism the hose can be latched every half metre. The reel is supplied complete with a steel mounting bracket which allows the reel to pivot 270 degrees and a locking plate to be fixed into a set position if required. The corrosion and weather resistant construction makes Retracta reels the ideal choice for both indoor and outdoor use. The spring rewind mechanism is factory lubricated and sealed for trouble free operation and can be easily re-tensioned externally without removing the reel casing.

Technical Specifications

• Type: High Pressure Hot Water hose reel
• Hose ID: 10mm
• Length: 12m
• Maximum working pressure: 3000psi (20,700kPa)
• Hose material: reinforced rubber (SAE 100 R2)
• Reel color: Red
• Hose color: Black
• Reel Inlet: 3/8” BSP (F)
• Hose outlet: 3/8”BSP (M)
• Weight: 12kg
• Dimensions: 250mm wide / 440mm high / 598mm long (including mounting bracket)
• Maximum Temperature 95 deg C
